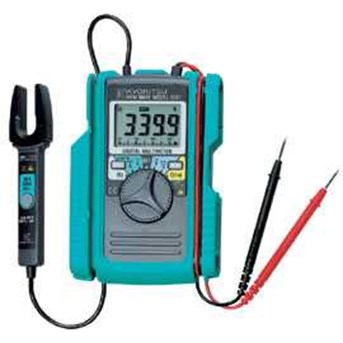

KYORITSU 2001 KEW MATE

• Capable of measuring AC and DC currents up to 100A with OPEN CLAMP SENSOR. • 3400 counts with bargraph display. • Pocket size and heavy duty design. • Sleep function to save battery consumption. • Designed to international safety standard IEC 61010-1 CAT.III 300V Range Measuring Range Accuracy DC A 100A : 0~100A |±2%rdg±5dgt AC A 100A : 0~100A |±2%rdg±5dgt (50/60Hz) DC V 340mV 3.4V 34V 340V 600V : 0~600V (5 Autoranging) |±1.5%rdg±4dgt AC V 3.4V 34V 340V 600V : 0~600V (4 Autoranging) |±1.5%rdg±5dgt (50~400Hz) Resistance (©) 340© (Continuity) 3.4k© 34k© 340k© 3.4M© 34M© : 0~33.99M© (6 Autoranging) Buzzer sounds at 30©|±10© |±1%rdg±3dgt (±5%rdg±5dgt) (±15%rdg±5dgt) Frequency (Hz) AC A 3.4kHz 10kHz : 0~10kHz (2 Autoranging) |±0.1%rdg±1dgt AC V 3.4kHz 34kHz 300kHz : 0~300kHz (3 Autoranging) |±0.1%rdg±1dgt Maximum AC/DC Circuit Voltage : 600V AC/DC (between line/neutral) 300V AC/DC (against earth) Conductor Size : Ø10mm max. Withstand Voltage : 3700V AC for 1 minute Safety Standard : IEC 61010-1 CAT.III 300V Pollution Degree 2 IEC 61010-2-031 IEC 61010-2-032 IEC 61326-1 Power Source : Two R03 or equivalent (DC1.5V) batteries Dimensions : 128(L) × 91(W) × 27(D)mm Weight : 220g approx. Accessories : R03(1.5V) × 2 Instruction Manual Optional Soft Case
